Rebuilding a Grand Piano
Webb Young & his 1910 Hardman Concert Grand

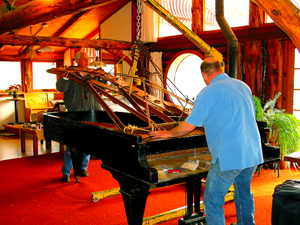

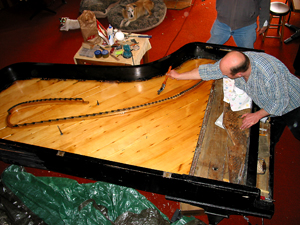

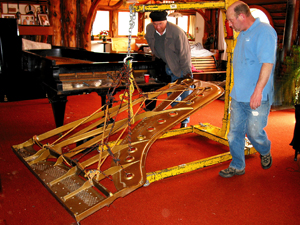

Pulling plate w/engine hoist to expose soundboard for crack repair

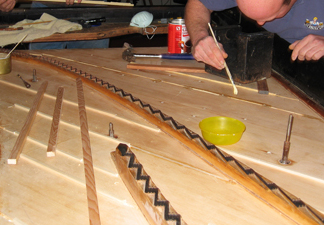

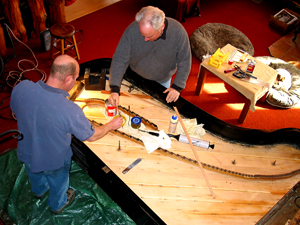

Bridge pin resetting

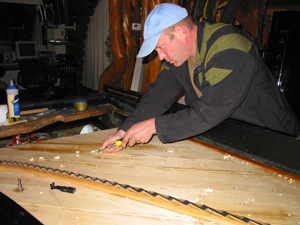

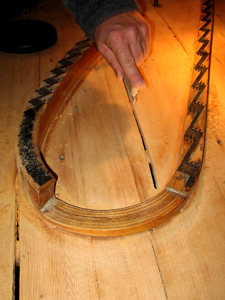

Rough trimming of shims with chisel
Many spruce shims were necessary
Routering board w/clamped on guides
Routered cracks prepared for shims

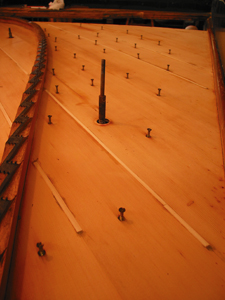

New brass rib screws installed

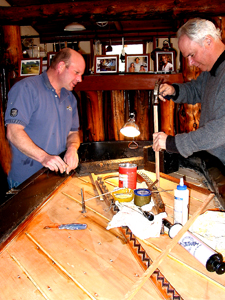

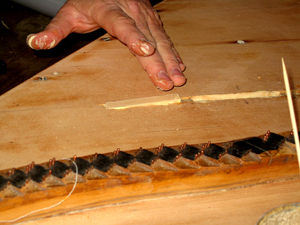

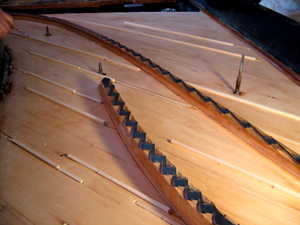

Spruce soundboard shims glued into routered-out cracks

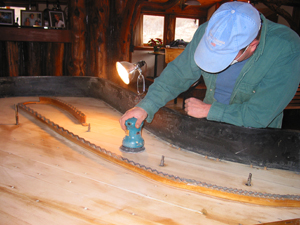

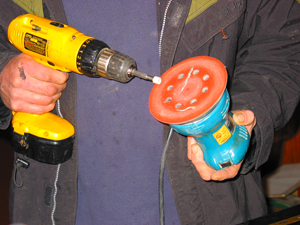

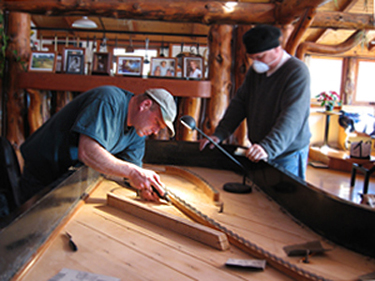

Sanding soundboard smooth

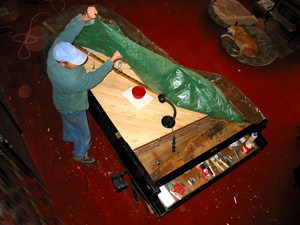

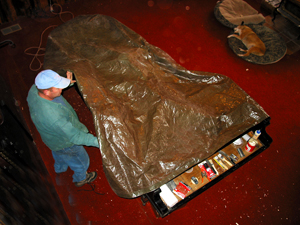

Rehydrating dry soundboard with bowls of water, electric humidifier, & tarp(for days)
Sealing soundboard

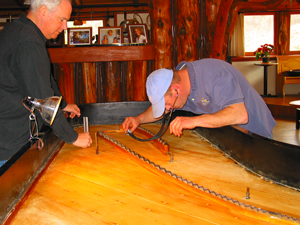

Checking repaired soundboard for resonance w/stethoscope & tuning fork

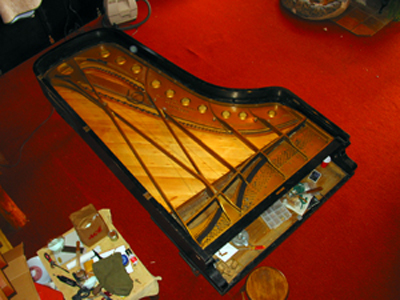

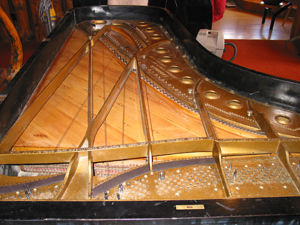

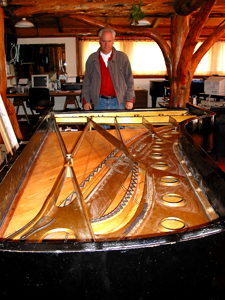

Plate back in and ready for setting tuning pins and strings
Sanding down tuning pin bushing to fit hole
Setting tuning pin bushings

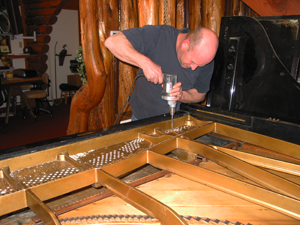

Reaming pin block to fit oversized tuning pins

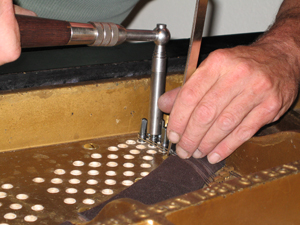

Setting tuning pins

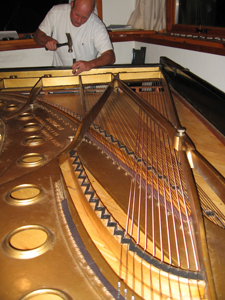

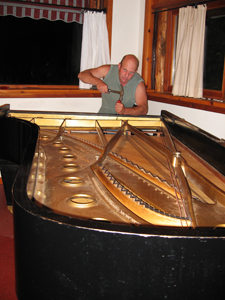

Driving pins

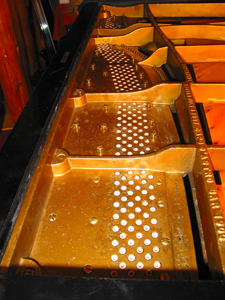

All new bushings in

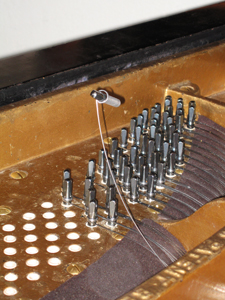

Attaching strings to tuning pins
Tightening pin and plucking string

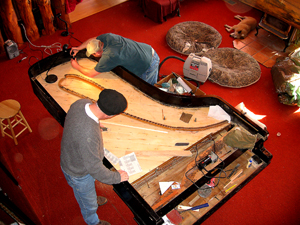

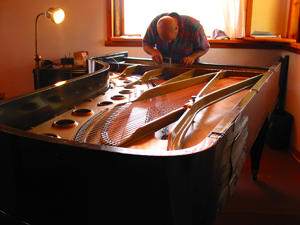

Beginning the restringing process

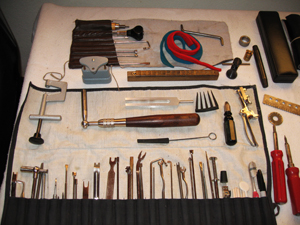

Piano tech tools

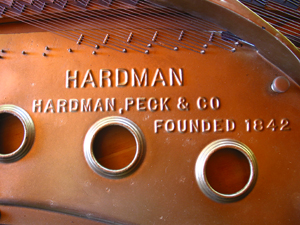

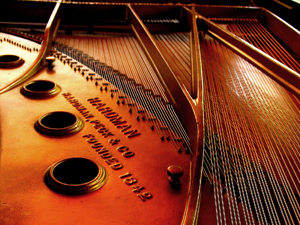

Piano plate cast w/manufacturer & date
Different gauge spring steel comes in different rolls

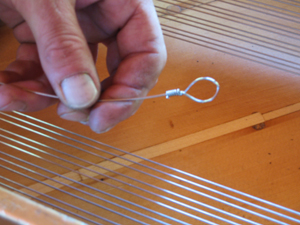

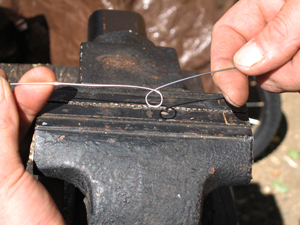

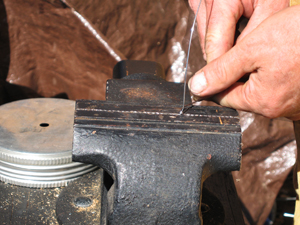

Finished hitch pin loop

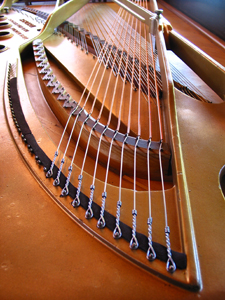

Stringing progress: 10 down, 225 to go
Down bearing gauge
Checking down-bearing string-pressure on bridge which is connected to
sounding board. String tension is adjustable at pin block.
Dampers
Restoring dampers w/new felts

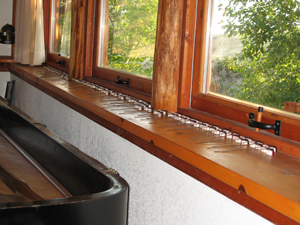

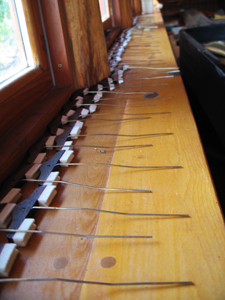

A block of restored dampers w/new felts

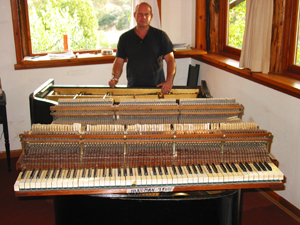

Piano action out

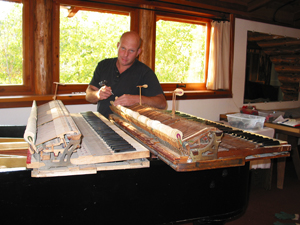

Working on piano action

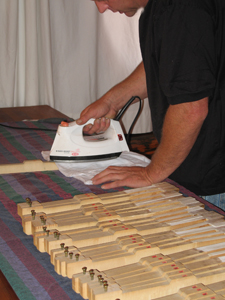

Steaming & removing old chipped ivory key-tops

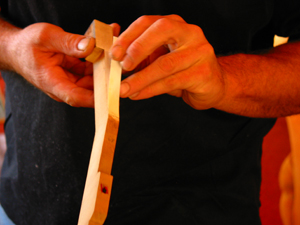

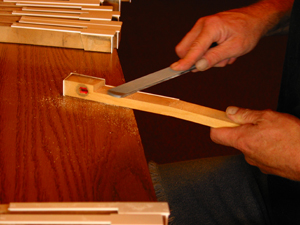

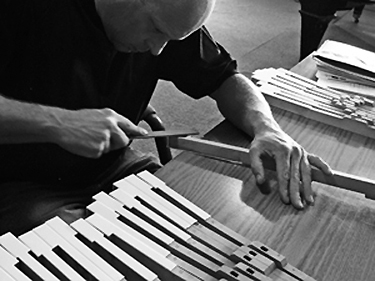

Filing new plastic key-top to fit

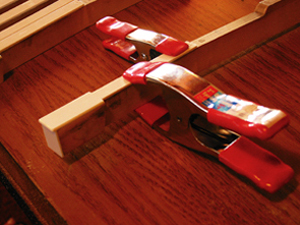

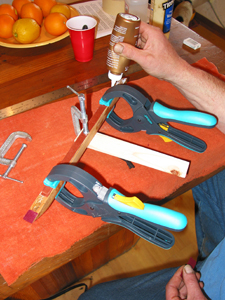

New plastic key-top glued & clamped

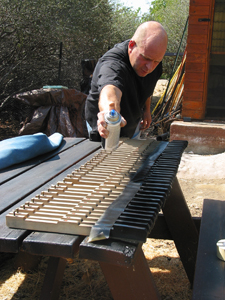

Refinishing black keys w/epoxy paint

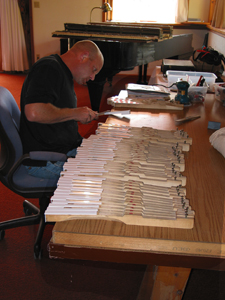

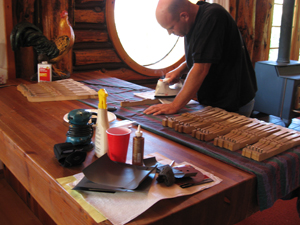

Working on all new key-tops

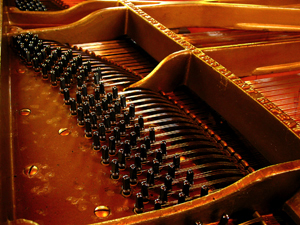

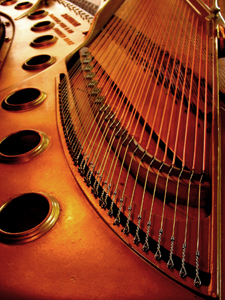

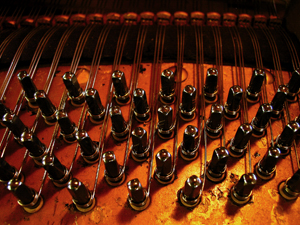

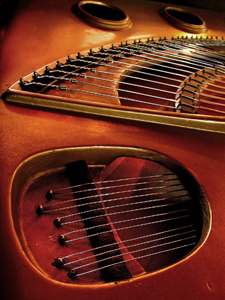

Inner Beauty of a Piano
